Buy & Auto Sell Order PDF
1. Overview of Screen
Buy & Auto Sell order and Sell & Auto Buy order are monitored by the Finansia HERO server system during the day, even after closing Finansia HERO.
Buy tab is a screen that can preset sell order so that a sell order can be executed automatically after matching of a buy order.
Sell tab is a screen that can preset buy order so that a buy order can be executed automatically after matching of a sell order.
In other words, this screen automatically executes a sell order according to preset sell conditions after buy order is matched and executes a buy order according to preset buy conditions after sell order is matched.
※ Caution Simulation of orderable amount can be inaccurate if additional sell order is matched when there is an unmatched sell order. Therefore, only estimate orderable amount when there is no unmatched sell order.
Buy tab is a screen that can preset sell order so that a sell order can be executed automatically after matching of a buy order.
Sell tab is a screen that can preset buy order so that a buy order can be executed automatically after matching of a sell order.
In other words, this screen automatically executes a sell order according to preset sell conditions after buy order is matched and executes a buy order according to preset buy conditions after sell order is matched.
※ Caution Simulation of orderable amount can be inaccurate if additional sell order is matched when there is an unmatched sell order. Therefore, only estimate orderable amount when there is no unmatched sell order.

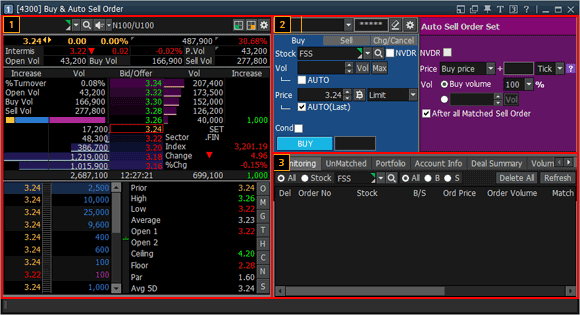

2. Description of Screen

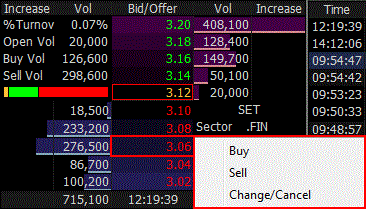

Bid/Offer Area
Detailed information and bid/offer of a stock can be viewed.
Especially, rotator view function is provided. The user can view price of stocks of each group and write down memo to create a simple user database for each stock.
In addition, Finansia HERO displays remaining order volume of each bid/offer as a bar graph to intuitively judge remaining volume of each bid/offer.
Additional information can be changed by clicking
button at the top right corner. Click

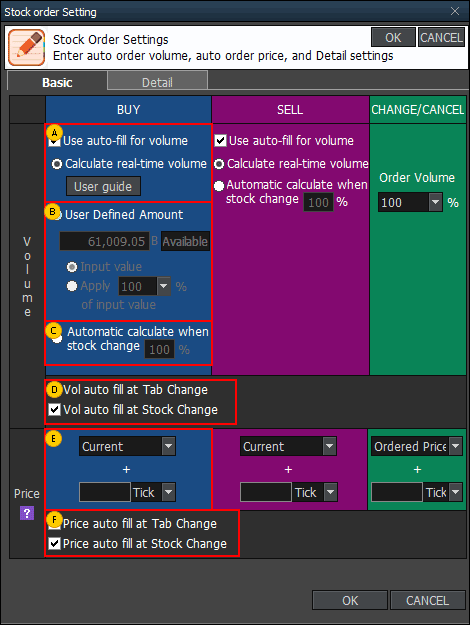

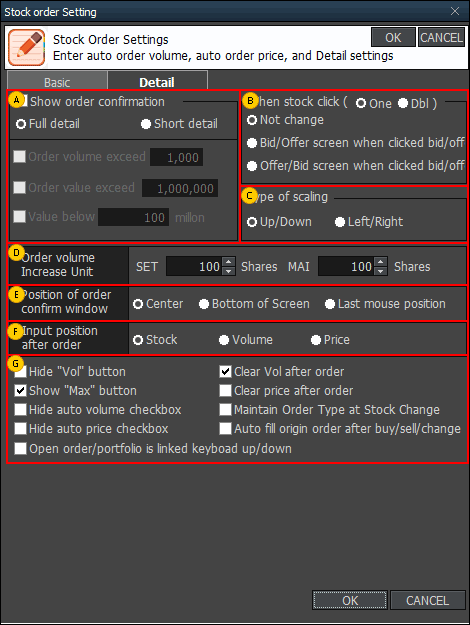

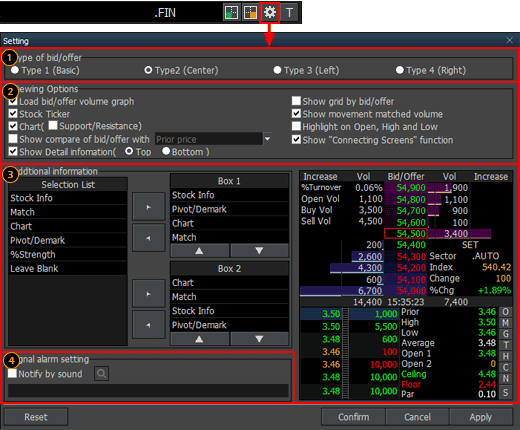

button to configure details on the ‘Setting’ screen.
Detailed information and bid/offer of a stock can be viewed.
Especially, rotator view function is provided. The user can view price of stocks of each group and write down memo to create a simple user database for each stock.
In addition, Finansia HERO displays remaining order volume of each bid/offer as a bar graph to intuitively judge remaining volume of each bid/offer.
Additional information can be changed by clicking
button at the top right corner. Click button to configure details on the ‘Setting’ screen.Connecting Screens function
: ‘[4000] Mini Order’ screen is opened to order a stock.
: ‘[1100] Most Active’ screen is opened to view most active stocks of the day.
: ‘[1101] Top Gain / Loss’ screen is opened to view top gain/loss stocks compared to previous day.
: ‘[3002] Stock Ticker’ screen is opened to view matching of stocks on a mini screen.
: ‘[3003] Historical Price’ screen is opened to view daily price status of a stock.
: ‘[6000] Technical Chart’ screen is opened for technical analysis of a stock.
: ‘[8000] Market News’ screen is opened to view various news related to a stock.
: ‘[5000] FSS Conditional Scanner’ screen is opened for general analysis of a stock.Order Area
'Buy, Sell, Change/Cancel' order can be entered and executed in the order area.
'Buy, Sell, Change/Cancel' order can be entered and executed in the order area.
Buy order
Buy order uses settings allowing the user to actively engage in trading using Buy & Auto Sell order.
Buy order uses settings allowing the user to actively engage in trading using Buy & Auto Sell order.
Select an account to execute a buy order.
Select a stock to order.
If
is checked, a stock without voting right for the stock selected by the user is selected.
If
is checked, a stock without voting right for the stock selected by the user is selected.Directly enter order volume or click

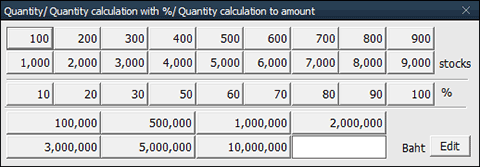

and select volume on the volume selection pop-up window.
Click
button to calculate maximum possible volume based on portfolio.
If ‘AUTO’ item is checked, volume corresponding to % of sellable amount set by the user is automatically calculated.
and select volume on the volume selection pop-up window.Click
button to calculate maximum possible volume based on portfolio.If ‘AUTO’ item is checked, volume corresponding to % of sellable amount set by the user is automatically calculated.

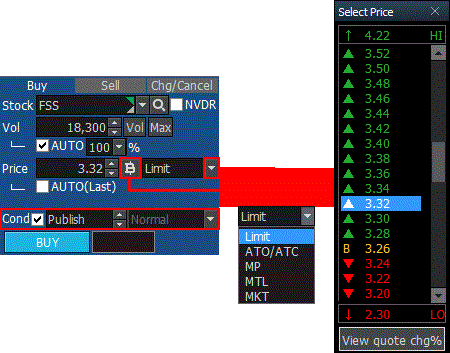

Directly enter order price or click the button to select bid and designate price type. If 'AUTO(Last)' item is checked, last price of the stock is entered automatically.
If ‘Cond’ item is checked, detailed order type can be selected.
If ‘Cond’ item is checked, detailed order type can be selected.
Click
button to execute the buy order.
button to execute the buy order.Click
button to delete all order details entered by the user and enter a new order.
button to delete all order details entered by the user and enter a new order.Sell order
Sell order uses settings allowing the user to actively engage in trading using Sell & Auto Buy order.
Sell order uses settings allowing the user to actively engage in trading using Sell & Auto Buy order.
Select an account to execute a sell order
Select a stock to order.
If
iis checked, a stock without voting right for the stock selected by the user is selected.
If
iis checked, a stock without voting right for the stock selected by the user is selected.Directly enter order volume or click and select volume on the volume selection pop-up window.
Click button to calculate maximum possible volume based on portfolio.
If ‘AUTO’ item is checked, volume corresponding to % of sellable amount set by the user is automatically calculated.
and select volume on the volume selection pop-up window.Click
button to calculate maximum possible volume based on portfolio.If ‘AUTO’ item is checked, volume corresponding to % of sellable amount set by the user is automatically calculated.
Directly enter order price or click the button to select bid and designate price type. If 'AUTO(Last)' item is checked, last price of the stock is entered automatically.
If ‘Cond’ item is checked, detailed order type can be selected.
If ‘Cond’ item is checked, detailed order type can be selected.
Click
button to execute the sell order.
button to execute the sell order.Click to delete all order details entered by the user and enter a new order.
to delete all order details entered by the user and enter a new order.Change/cancel order
※ Caution
If an original order of buy & auto sell or sell & auto buy is changed, it is switched to ordinary order according to changed conditions and auto order monitoring is cancelled.
If an original order of buy & auto sell and sell & auto buy is cancelled, both the original order and auto order monitoring are cancelled.
※ Caution
If an original order of buy & auto sell or sell & auto buy is changed, it is switched to ordinary order according to changed conditions and auto order monitoring is cancelled.
If an original order of buy & auto sell and sell & auto buy is cancelled, both the original order and auto order monitoring are cancelled.
Select an account to execute a change/cancel order.
Select a stock to order.
Click order history under monitoring tab and unmatched tab in area
to automatically select order no.
to automatically select order no.Change / cancel order can be done on ALL volume.
In case of change order, directly enter order price or click
button and select bid/offer from the pop-up window. Then designate price type.
If 'AUTO (Last)' item is checked, last price of the stock is entered automatically.
If ‘Cond’ item is checked, publish can be designated for an iceberg order. SBL shows SBL type of the original order as is.
Item is not designated in case of cancel order.
button and select bid/offer from the pop-up window. Then designate price type.If 'AUTO (Last)' item is checked, last price of the stock is entered automatically.
If ‘Cond’ item is checked, publish can be designated for an iceberg order. SBL shows SBL type of the original order as is.
Item is not designated in case of cancel order.
Click
buttons to execute the order
buttons to execute the orderClick button delete all order details entered by the user and enter a new order.
button delete all order details entered by the user and enter a new order.Auto Sell Order Set
‘Type, price, volume’ of sell order to be executed automatically after matching of a buy order can be preset. The sell order is executed automatically according to the preset setting after matching of a buy order.
‘Type, price, volume’ of sell order to be executed automatically after matching of a buy order can be preset. The sell order is executed automatically according to the preset setting after matching of a buy order.
NVDR option selected in Buy order is used as is. In other words, NVDR cannot be changed in Auto Sell order.
Designation of order price.
- Buy Price: If Buy Price is selected, a sell order is entered at respective price according to ‘Tick or %’ condition using sell order price as buy price.
- Direct Input: Sell price is entered directly.
- Buy Price: If Buy Price is selected, a sell order is entered at respective price according to ‘Tick or %’ condition using sell order price as buy price.
- Direct Input: Sell price is entered directly.
Vol.: Sell order volume can be entered directly or as a ratio (%) of matched buy volume.
If after all Matched Sell Order is checked, an order is only executed when all sell orders are matched. The sell order is not executed in case of partial matching.
Auto Buy Order Set
NVDR option selected in Sell order is used as is. In other words, NVDR cannot be changed in Auto Buy order.
Designation of order price
- Sell Price: If Sell Price is selected, a buy order is entered at respective price according to ‘Tick or %’ condition using buy order price as sell price
- Direct Input: Buy price is entered directly.
- Sell Price: If Sell Price is selected, a buy order is entered at respective price according to ‘Tick or %’ condition using buy order price as sell price
- Direct Input: Buy price is entered directly.
Vol.: Buy order volume can be entered directly or as a ratio (%) of matched sell volume.
If after all Matched Buy Order is checked, an order is only executed when all buy orders are matched. The buy order is not executed in case of partial matching.
Account Information Area
Various information related to account such as "Monitoring, UnMatched, Portfolio, Account Info, Deal Summary, Volume Simulator" is provided using tabs. Change all, cancel all and sell all actions can be done commonly by selecting the checkbox next to the stock.
Various information related to account such as "Monitoring, UnMatched, Portfolio, Account Info, Deal Summary, Volume Simulator" is provided using tabs. Change all, cancel all and sell all actions can be done commonly by selecting the checkbox next to the stock.

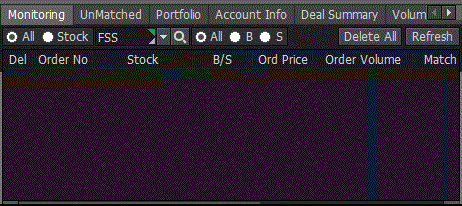

Monitoring
Monitoring details set by the user in Buy & Auto Sell, Sell & Auto Buy can be viewed or cancelled.
Monitoring details set by the user in Buy & Auto Sell, Sell & Auto Buy can be viewed or cancelled.

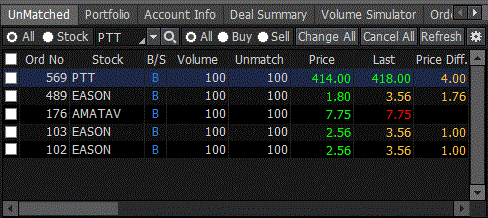

UnMatched
Unmatched status can be viewed at a sight.
Unmatched status can be viewed at a sight.

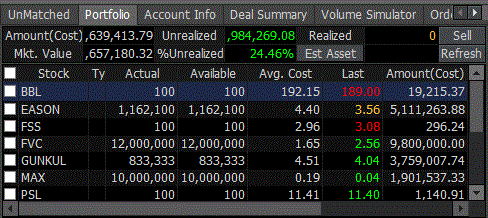

Portfolio
Current account portfolio information can be examined at a sight.
Current account portfolio information can be examined at a sight.
『Account Terms』
Amount(Cost): Buy amount when buying portfolio owned (buy amount + commission + fee + VAT)
Avg(Cost): Amount(Cost) / volume
Mkt.Value: Appraised value (volume * last price)
Unrealized: Sum of profit and loss from portfolio owned (Mkt.Value - Amount(Cost) - commission - fee – VAT)
%Unrealized: Sum of profit and loss from valuation of portfolio owned (Unrealized / Amount(Cost) * 100)
est asset: Cash balance + Mkt.Value
Realized: (Sell price – Avg(Cost)) * matched sell volume – commission – fee – VAT

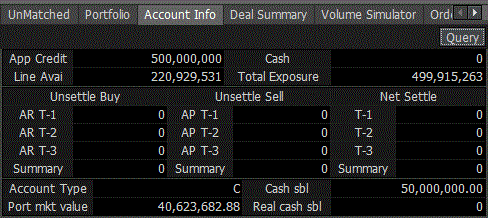

Account Info
Current account information can be viewed.
Cash refers to remaining cash in the account. Even if the stock is in possession, cash is indicated as 0 if there is no cash in the account.
Current account information can be viewed.
Cash refers to remaining cash in the account. Even if the stock is in possession, cash is indicated as 0 if there is no cash in the account.

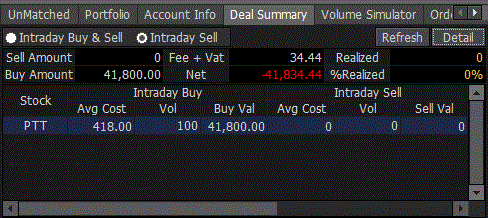

Deal Summary
Detailed trading status of the day can be viewed. Details of daily buy orders and sell orders are viewed.
Detailed trading status of the day can be viewed. Details of daily buy orders and sell orders are viewed.

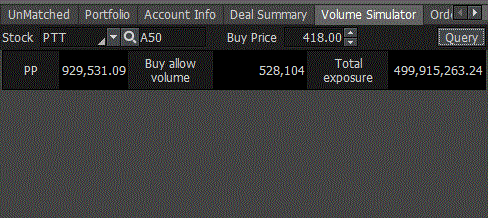

Volume Simulator
‘PP, Buy allow volume, Total exposure’ information is viewed by entering stock and buy price.
‘PP, Buy allow volume, Total exposure’ information is viewed by entering stock and buy price.

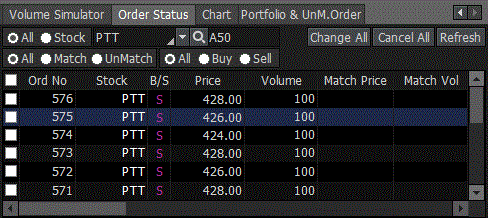

Order Status
Daily order status can be viewed.
Daily order status can be viewed.

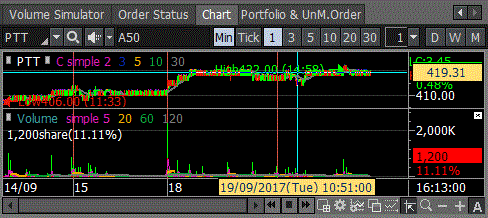

Chart
The chart of the stock can be viewed. Similar to the general chart, various indicators and analysis tools can be used.
The chart of the stock can be viewed. Similar to the general chart, various indicators and analysis tools can be used.

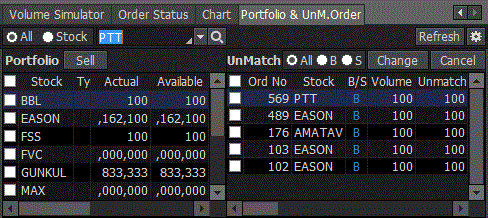

Portfolio & UnM.Order
Portfolio and Unmatched order information can be viewed, and ‘Change All/Cancel All’ order can be executed for unmatched stocks.
Portfolio and Unmatched order information can be viewed, and ‘Change All/Cancel All’ order can be executed for unmatched stocks.
『Common Matters for Bid/Offer Area』
Selection of a stock to be viewed
Enter or select a stock to be viewed.
Enter or select a stock to be viewed.
Selection of a stock to be viewed
The user can directly enter a stock to be viewed.
Click
button to open a list of stocks previously viewed.
button to open a list of stocks previously viewed.Click

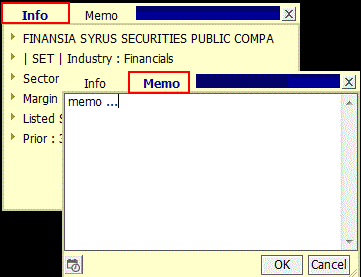

next to stock name to see ‘Info’ and ‘Memo’ for the selected stock. Memo function allows the user to write down opinions and thoughts about a stock. This memo can be checked at any time on other screens. This is a simple user database for stocks that adds to price viewing function of the screen.
next to stock name to see ‘Info’ and ‘Memo’ for the selected stock. Memo function allows the user to write down opinions and thoughts about a stock. This memo can be checked at any time on other screens. This is a simple user database for stocks that adds to price viewing function of the screen.Selection of a stock to be viewed through search
Click

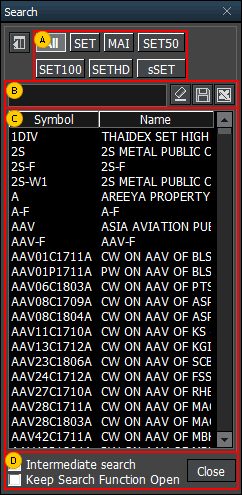

button to open the ‘Search’ pop-up window and select a stock to be viewed.
Click
button to open the ‘Search’ pop-up window and select a stock to be viewed.Select a category to be viewed such as SET, MAI.
Directly enter a stock to be searched and viewed.
Click
to save the search result as a TXT file on the user’s PC.
Click
to save the search result as an Excel file on the user’s PC.
Click
to save the search result as a TXT file on the user’s PC.Click
to save the search result as an Excel file on the user’s PC.A list of stocks in the category selected in
or a list of stocks based on the search results described in
is provided.
or a list of stocks based on the search results described in is provided.Intermediate Search and Keep Search Function Open functions can be selected

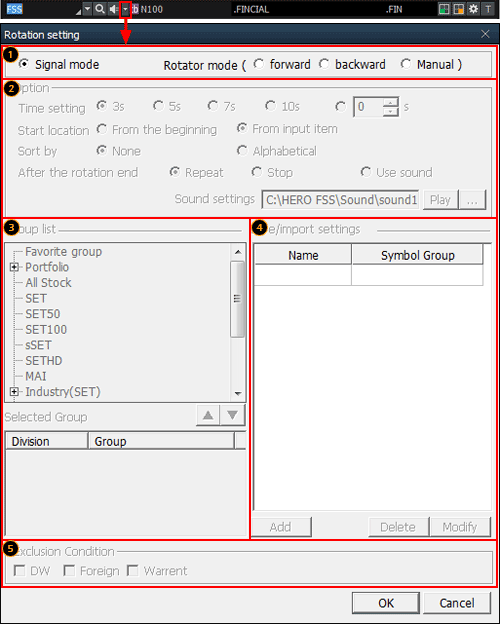

Signal mode / rotator mode functions
HERO FSS helps the user view stock price information by providing signal mode / rotator mode functions.
Click
to set signal mode and rotator mode.
HERO FSS helps the user view stock price information by providing signal mode / rotator mode functions.
Click
to set signal mode and rotator mode.Mode selection

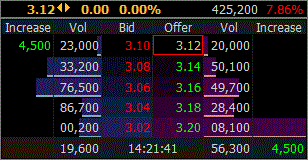

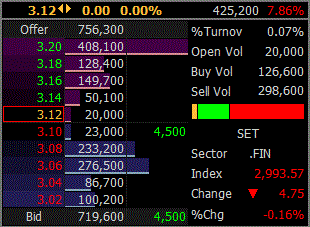

Signal mode
This mode is a general mode that views price information of a stock selected by the user.
This mode is a general mode that views price information of a stock selected by the user.

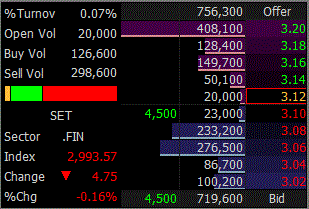

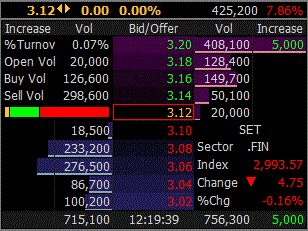

Rotator mode
This is a mode that views price information of multiple socks according to the conditions set by the user (stock, direction, time, etc.).
This is a mode that views price information of multiple socks according to the conditions set by the user (stock, direction, time, etc.).
Forward: Price information of the selected stocks is rotated in forward direction of the list.
Backward: Price information of the selected stocks is rotated in backward direction of the list.
Manual: The user can manually click to decide rotating direction to view the selected stocks.
Stock rotator option
Time setting: Time of automatic rotation of stocks can be set.
Start location: A stock can be designated as the starting location on the list of stocks.
Sort by: Sorting order of the stock list can be set.
After the rotation end: Operation to be done after the end of rotation of the selected stocks can be set.
Sound setting: A wav file on the user’s PC can be selected
Designation of rotator stock list
Double click a group from the group list for rotator view or click
button to show the selected group in the selected group area at the bottom.
One group or multiple groups can be selected.
Click
button to delete the selected group.
Double click a group from the group list for rotator view or click
button to show the selected group in the selected group area at the bottom.One group or multiple groups can be selected.
Click
button to delete the selected group.After selecting the stock group for rotator view in
, click
button to save the selected group.
, click button to save the selected group.Exclusion condition can be set for the stocks selected for rotator view.
Change additional information
Click button at the top right corner of the screen to change additional information provided at the bottom. Details will be shown as picture below:
Click
button at the top right corner of the screen to change additional information provided at the bottom. Details will be shown as picture below:Settings
Current price screens of HERO FSS can quickly recognize prices of stocks through various graphics and colors.
To fully utilize such functions, click button at the top of the screen and select desired options.
Current price screens of HERO FSS can quickly recognize prices of stocks through various graphics and colors.
To fully utilize such functions, click
button at the top of the screen and select desired options.Type of bid/offer setting
One of 4 types including ‘Basic, Center, Left and Right’ can be selected according to position of bid/offer data.
Basic Type divides bid and offer into left and right sides and arranges prices vertically. This type can clearly distinguish between bid status and offer status.
Center Type divides bid and offer into left and right sides around the center, allowing for easy analysis of bid and offer information.
Left Type and Right Type align bid/offer information in a line on the left side or right side.
Finansia HERO offers different types of bid/offer alignment and additionally provides a graph that shows remaining volume of each bid/offer price. User convenience was maximized to intuitively recognize bid/offer information by providing different bid/offer arrangement types and graph for remaining volume of each bid/offer price.
One of 4 types including ‘Basic, Center, Left and Right’ can be selected according to position of bid/offer data.
Basic Type divides bid and offer into left and right sides and arranges prices vertically. This type can clearly distinguish between bid status and offer status.
Center Type divides bid and offer into left and right sides around the center, allowing for easy analysis of bid and offer information.
Left Type and Right Type align bid/offer information in a line on the left side or right side.
Finansia HERO offers different types of bid/offer alignment and additionally provides a graph that shows remaining volume of each bid/offer price. User convenience was maximized to intuitively recognize bid/offer information by providing different bid/offer arrangement types and graph for remaining volume of each bid/offer price.
Type 1 (Basic)
Type 2 (Center)
Type 3 (Left)
Type 4 (Right)
Viewing options
Load bid/offer volume graph: Bid/offer volume is displayed as a graph.
Show gird by bid/offer: Bid/offer grid display can be set.
Stock ticker: Stock ticker display can be set. When selected button will be shown screen 1000 (Stock ticker)

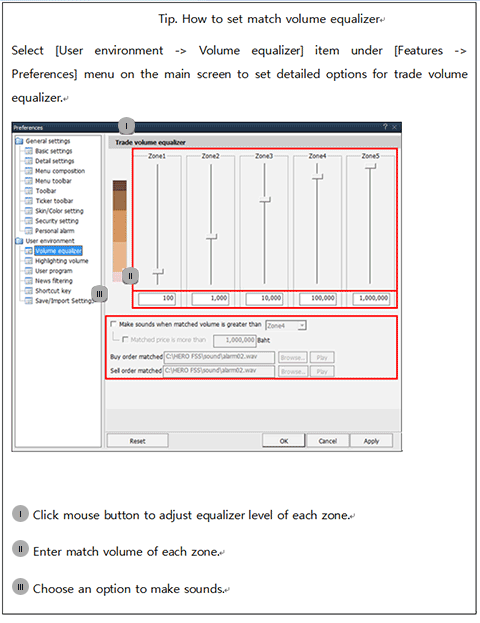

button will be shown screen 1000 (Stock ticker)Show movement matched volume: Instantaneous match volume equalizer display of (hourly) match tab can be set.
Chart: Chart display and support/resistance display on the chart can be set.
Highlight on open, high and low: Display of highlight on daily open, high and low prices can be set.
Show compare of bid/offer with ‘prior price’: Percent change can be viewed with prior price/open/high/low condition.
Show connecting screens function: Display of connecting screen button in the bid/offer area can be set. Selection O,M,G,T,H,C,N,S buttons to be also linked that screen.
Show detail information: Location of detailed stock information such as ‘250D High, 250D Low, PreOpen2, and P/E’ provided at the top of the screen can be selected.
Additional information
Additional information provided when button is clicked at the top right corner of the screen can be set. Up to 4 items can be set each for the top and the bottom. Order of items can be changed using
buttons or mouse drag & drop.
button is clicked at the top right corner of the screen can be set. Up to 4 items can be set each for the top and the bottom. Order of items can be changed using buttons or mouse drag & drop.Signal alarm setting: Signal alarm setting can be set by selecting a sound to be used.
Bid/offer area order function
On the bid/offer window of the current price screen, put the mouse cursor on a bid/offer and click the right mouse button to open an order menu for ‘Buy, Sell, Change/Cancel’.
Select an order item to automatically enter the selected price into ‘[4000] Mini Order’ screen, which allows for fast order placement with minimal time and route.
Select an order item to automatically enter the selected price into ‘[4000] Mini Order’ screen, which allows for fast order placement with minimal time and route.

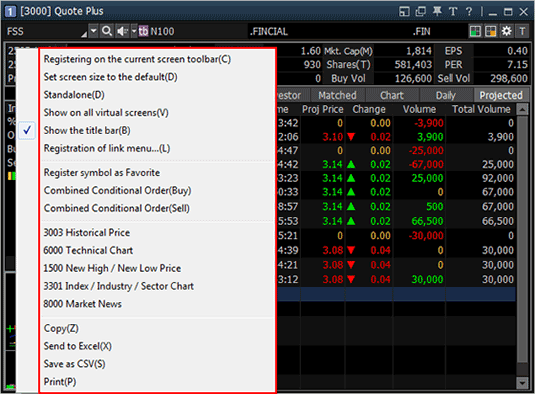

Additional / special functions on right mouse button
Finansia HERO has maximized user convenience by providing various additional and special functions when the right mouse button is clicked on the screen
Finansia HERO has maximized user convenience by providing various additional and special functions when the right mouse button is clicked on the screen
Registering on the current screen toolbar(C)
Select this option to register the current screen on the main screen toolbar.
Select this option to register the current screen on the main screen toolbar.
Standalone(D)
Select this option to recognize the current screen as a standalone window and freely move it out of the Finansia HERO frame.
Select this option to recognize the current screen as a standalone window and freely move it out of the Finansia HERO frame.
Show on all virtual screen(V)
Select this option to show the current screen on all virtual screens in use.
Select this option to show the current screen on all virtual screens in use.
Show the title bar(B)
The title bar at the top of the screen can be shown or hidden.
The title bar at the top of the screen can be shown or hidden.
Send to Excel(X)
Data on the current screen can be sent to the Excel program. Data generated using 'Send to Excel' function is not saved. Data must be saved before closing the Excel program.
Data on the current screen can be sent to the Excel program. Data generated using 'Send to Excel' function is not saved. Data must be saved before closing the Excel program.
Save as CSV(S)
Data viewed are saved as a CSV file of Excel. Click this menu, enter saving location and name, and click ‘Save’ button to save data.
Data viewed are saved as a CSV file of Excel. Click this menu, enter saving location and name, and click ‘Save’ button to save data.
『Common Matters for Order Area』
Order Settings
The order screen of Finansia HERO allows for fast and convenient trading through configuration of trading volume and price settings.
In addition, various setting options are designed so that the user can decide settings based on personal trading environment and style, thus maximizing efficiency of trading. Various setting values are automatically changed on the trading window in real time when the stock is changed or bid/offer changes.
The order screen of Finansia HERO allows for fast and convenient trading through configuration of trading volume and price settings.
In addition, various setting options are designed so that the user can decide settings based on personal trading environment and style, thus maximizing efficiency of trading. Various setting values are automatically changed on the trading window in real time when the stock is changed or bid/offer changes.
Basic
Auto-fill for volume: Auto-fill for volume is a function that automatically fills volume reflecting account information such as deposit and portfolio, as well as real-time price, so that orders can be placed immediately.
User Defined Amount: This option sets automatic calculation of volume based on amount entered directly or amount viewed by clicking Available button.
Input Value: Check the radio buton to calculate volume based on input amount. If Apply % of input value radio button is selected, volume is calculated as a ratio of input amount.
Ex) If 1,111 is entered into User Defined Amount and ‘Input value’ is selected, volume is calculated automatically based on 1,111 Baht entered by the user. If 50% is selected, volume is calculated to be 555 Baht (1,111 Baht × 50%).
Input Value: Check the radio buton to calculate volume based on input amount. If Apply % of input value radio button is selected, volume is calculated as a ratio of input amount.
Ex) If 1,111 is entered into User Defined Amount and ‘Input value’ is selected, volume is calculated automatically based on 1,111 Baht entered by the user. If 50% is selected, volume is calculated to be 555 Baht (1,111 Baht × 50%).
Automatic calculate when stock change: Order volume can be entered in %.
When changing tab or stock, order volume and price can be filled automatically.
If 'Price auto fill at stock change' item is selected, bid/offer price is filled automatically as price of “Buy, Change/Cancel or Sell” order whenever stock is changed.
If 'Price auto fill at stock change' item is selected, bid/offer price is filled automatically as price of “Buy, Change/Cancel or Sell” order whenever stock is changed.
Order price is entered automatically according to designated tick or %.
When changing tab or stock, order volume and price can be filled automatically.
Detail
Order confirmation can be shown in full detail or short detail.
Events when the stock is one clicked or double clicked can be designated.
This function automatically switches to Buy tab or Sell tab when mouse button is clicked in the bid/offer area.
This function automatically switches to Buy tab or Sell tab when mouse button is clicked in the bid/offer area.
Type of scaling buttons can be selected between up/down and left/right.
Increase unit of order volume can be designated by the user. Default order volume is 100 or 50 stocks depending on price, but it can be set by the user for fast order placement considering size of deposit in the user’s account.
Position of the order confirmation window can be designated.
Input position after order can be designated.
Various options such as showing of order window buttons can be set.
『Order Type』
Limit : Limit order is an order to buy or sell at a specified price.
MKT(Market Order) : A market order is an order to buy or sell a stock at the best available price. A market order can be matched at more than one price level. Unmatched quantity (if any) will be automatically cancelled. Market orders are allowed only during open trading sessions.
MP(Special Market Order) : A special market order is an order to buy or sell a stock at the best available price. Such an order can be matched at more than one price level. Unmatched quantity (if any) will be converted to a limit order at a price of one tick better than the last executed price. Special market orders are allowed only during open trading sessions.
MTL(Market-to-Limit Order) : A market-to-limit order is submitted as a market order to execute at the current best market price only. Unmatched quantity (if any) will be converted to a limit order at price equal to the last executed price. Market-to-limit orders are allowed only during open trading sessions.
ATO(At-The-Open Order) : An order to buy or sell a stock at the session’s opening price. ATO orders are allowed during pre-open sessions (morning and afternoon).
ATC(At the Close Order) : An order to buy or sell a stock at the closing price. ATC orders are allowed only during pre-close sessions.
IOC(Immediate-Or-Cancel Order) : An order to buy or sell a stock immediately at a specific price (limit order) on the condition that any remaining portion of the trade which is unmatched will be cancelled. IOC orders are allowed only during open trading sessions and are not allowed to be used with an Iceberg order or any market order type.
FOK(Fill-Or-Kill Order) : An order to place a trade immediately and completely at a specified price (limit order); if the specified conditions cannot be met immediately, the order is cancelled. FOK orders are allowed only during open trading sessions, and are not allowed to be used with an Iceberg order or any market order type.
Publish(Iceberg Order) : An iceberg order is a high volume order that has been equally subdivided into smaller lots so that only the portion of the total order which is currently being executed is visible. The broker specifies the subdivided portion of the order to be published in the order book. When the published portion of the order is executed, the next remaining suborder is made available for trade until the entire high-volume order has been executed.
An Iceberg order is allowed only during open trading sessions, must be a limit-price order, and must be divided into no more than 100 suborders. Any unmatched portions of an Iceberg order in each trading session will be automatically cancelled by the system. In addition, when the trading of a particular stock is halted, all unmatched volume of Iceberg orders will be automatically cancelled.
* Source of data: SET
An Iceberg order is allowed only during open trading sessions, must be a limit-price order, and must be divided into no more than 100 suborders. Any unmatched portions of an Iceberg order in each trading session will be automatically cancelled by the system. In addition, when the trading of a particular stock is halted, all unmatched volume of Iceberg orders will be automatically cancelled.
* Source of data: SET
